D7 System
OP-D7D9-3
DESCRIPTION
1. Two way communication
2. Unlock
3. One button call one individual room number
4. Transmit video image
5. Power indicator
6. IR camera

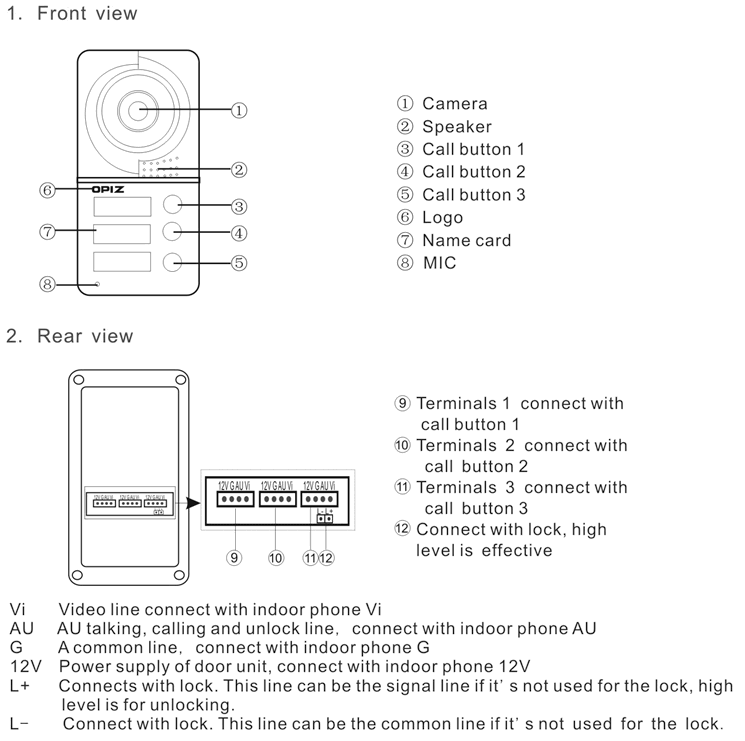

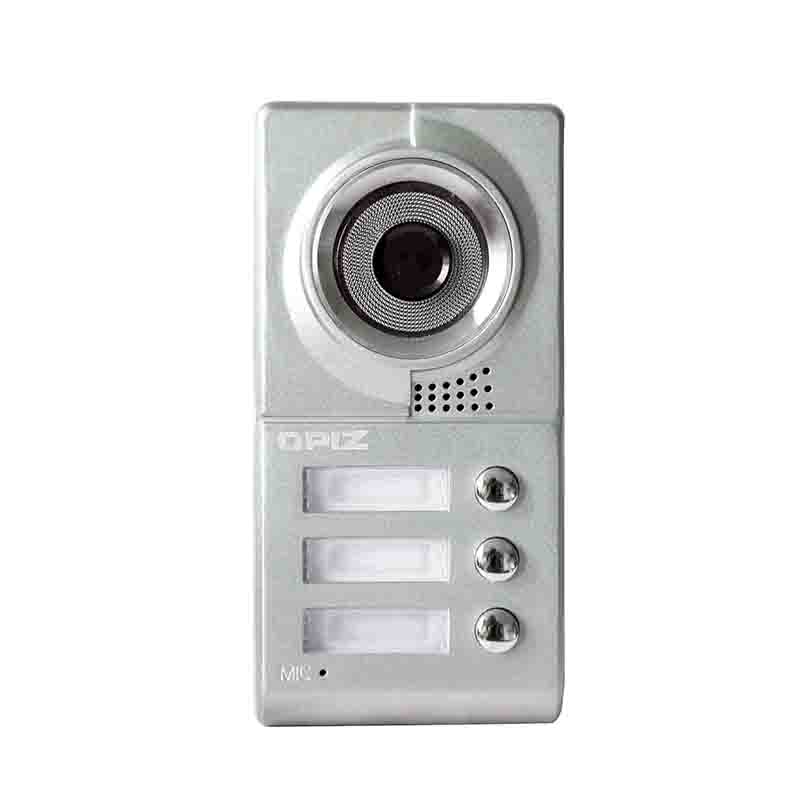

PRODUCT VIEWS
SPECIFICATION
| Temperature | -40~70 degrees Celsius |
| Relative humidity | 45%~95% |
| Atmospheric pressure | 86Kpa~108Kpa |
| Fire endurance rating | IP33 |
| Working voltage | DC12V~DC15V |
| Static current | 0.07mA |
| Working current | 166mA |
| Camera | Color 420L |
| Dimension | 180*90*35mm |
| Installation | 70*70*8mm |
| N.W | 440g |

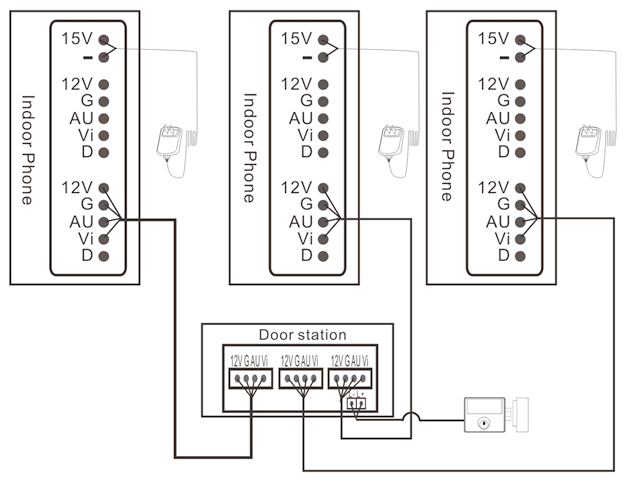

INSTALLATION
