D7 System
OP-D7D6R
DESCRIPTION
1.Two way communication
2.Unlock
3.One button for individual room
4.Video transmission
5.Back light for keyboard
6.Infrared camera
7.Adjustable image range
8.With rain-proof
9.ID card is available

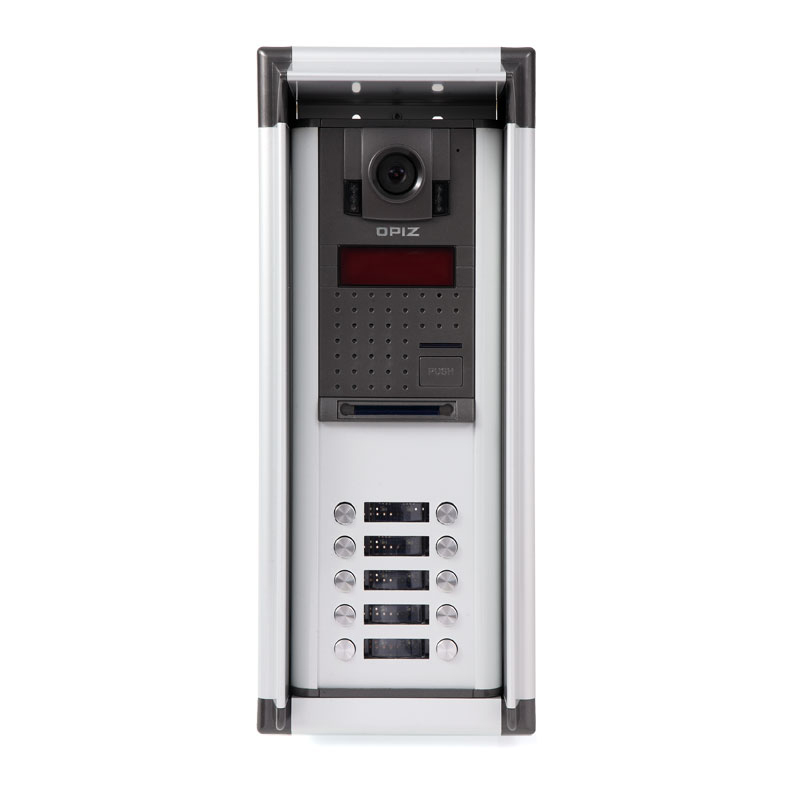

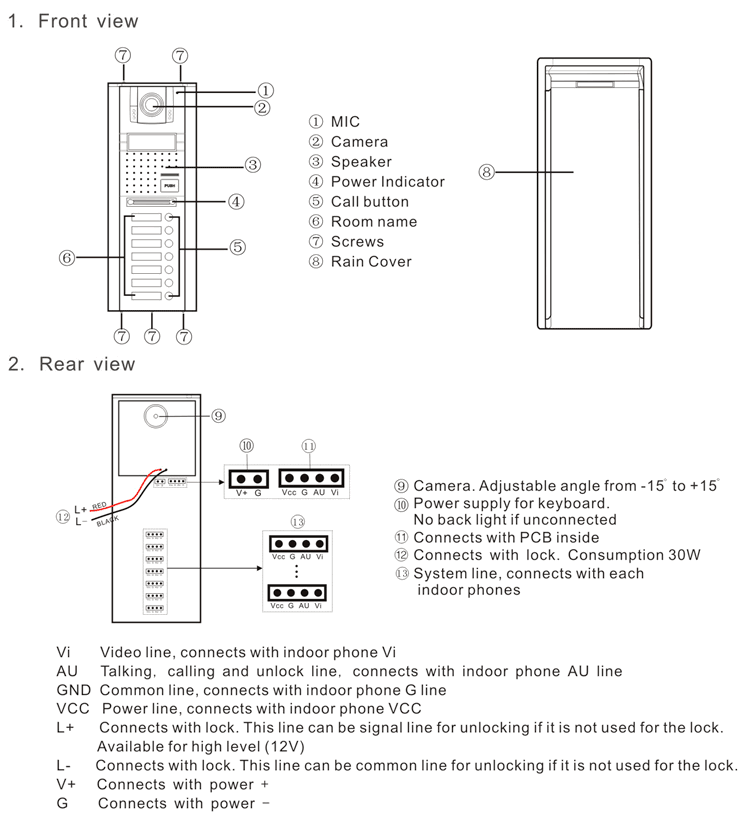

PRODUCT VIEWS
SPECIFICATION
| Temperature | -40~70 degrees Celsius |
| Relative humidity | 45%~95% |
| Atmospheric pressure | 86Kpa~108Kpa |
| Fire endurance rating | IP33 |
| Working voltage | DC12~DC15V |
| Static current | 17mA |
| Working current | 230mA |
| Camera | 420L |
| Dimension | 335*125*55mm |
| Installation | Wall mounted |
| N.W | 1270g |

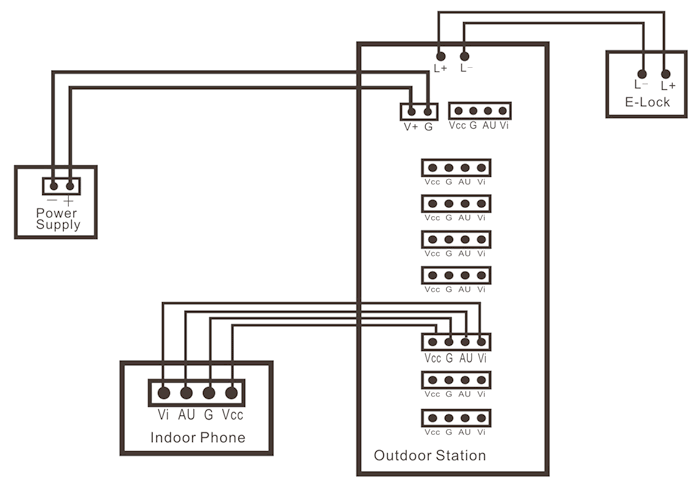

INSTALLATION
