D7 System
OP-D7D14
DESCRIPTION
1. Two way communication
2. Unlock
3. Video transmission
4. Back light for keyboard
5. LEDs for night vision
6. One system compatible audio and video
7. ID card is available

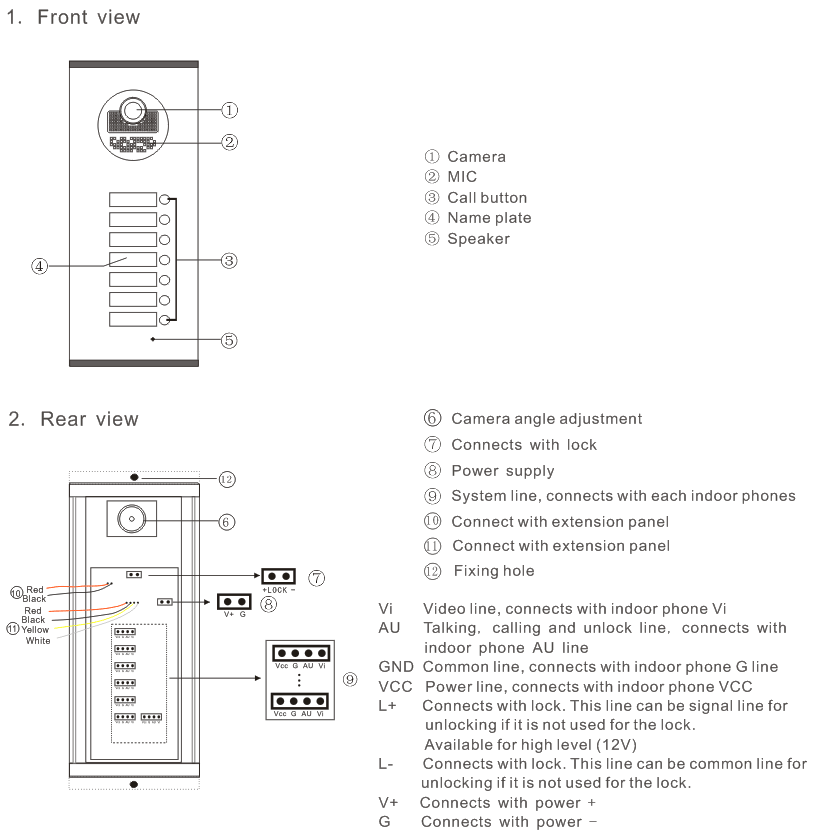

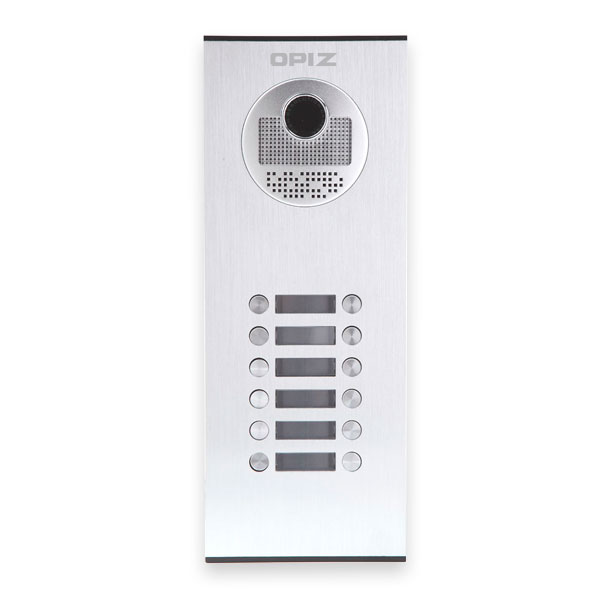

PRODUCT VIEWS
SPECIFICATION
| Temperature | -20~50 degrees Celsius |
| Relative humidity | 45%~95% |
| Atmospheric pressure | 86Kpa~108Kpa |
| Working voltage | DC12V |
| Standby current | 130mA |
| Working current | 230mA |
| Camera | Color 700TVL Cmos |
| Dimension | 332*128*48mm |
| Install dimension | 311*118*37mm |
| Net weight | 1150g |

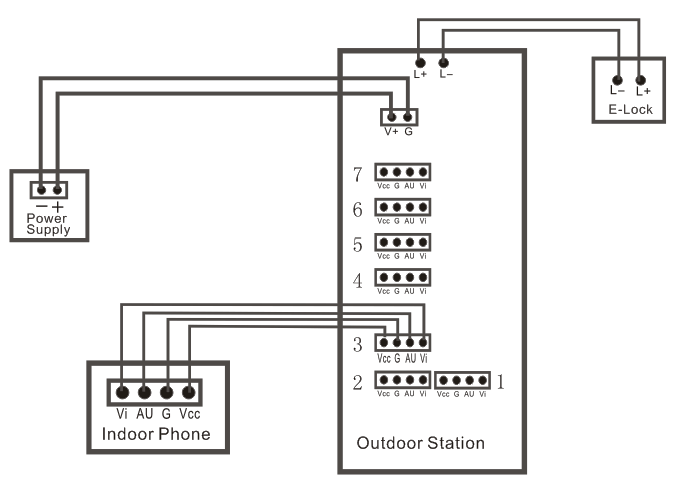

INSTALLATION
